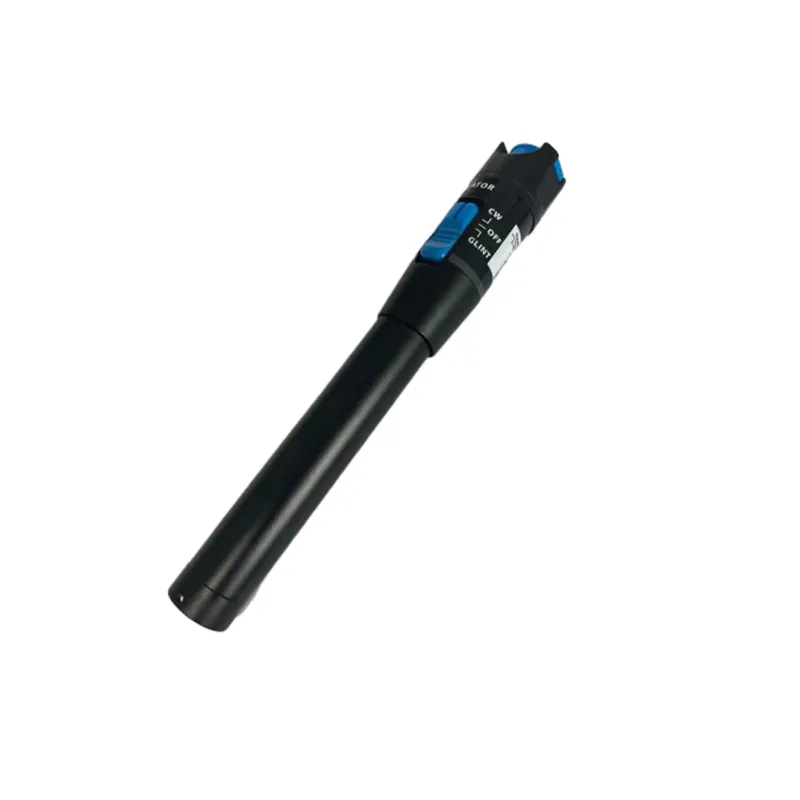

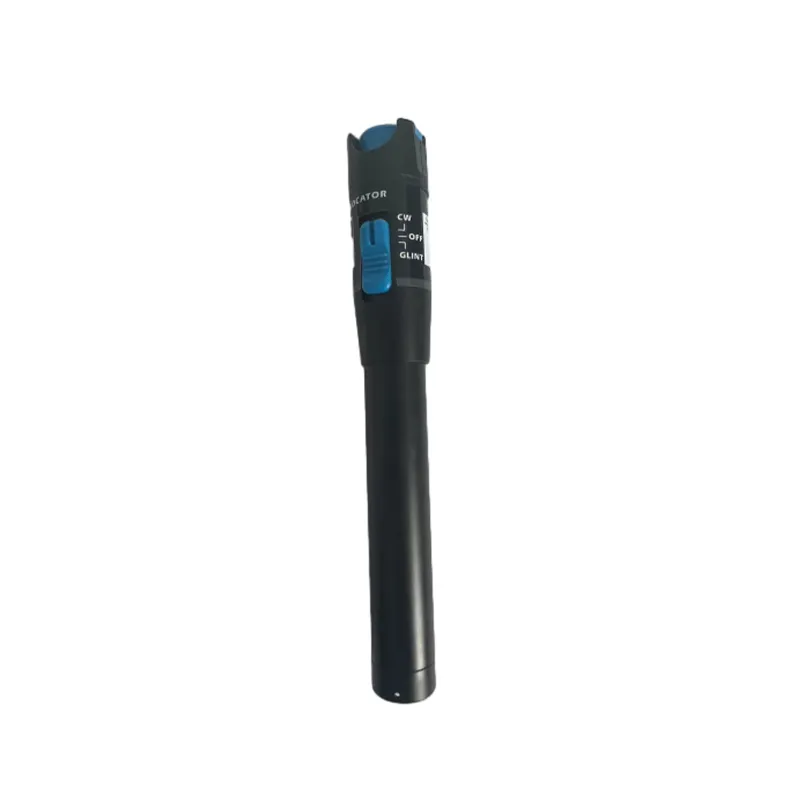

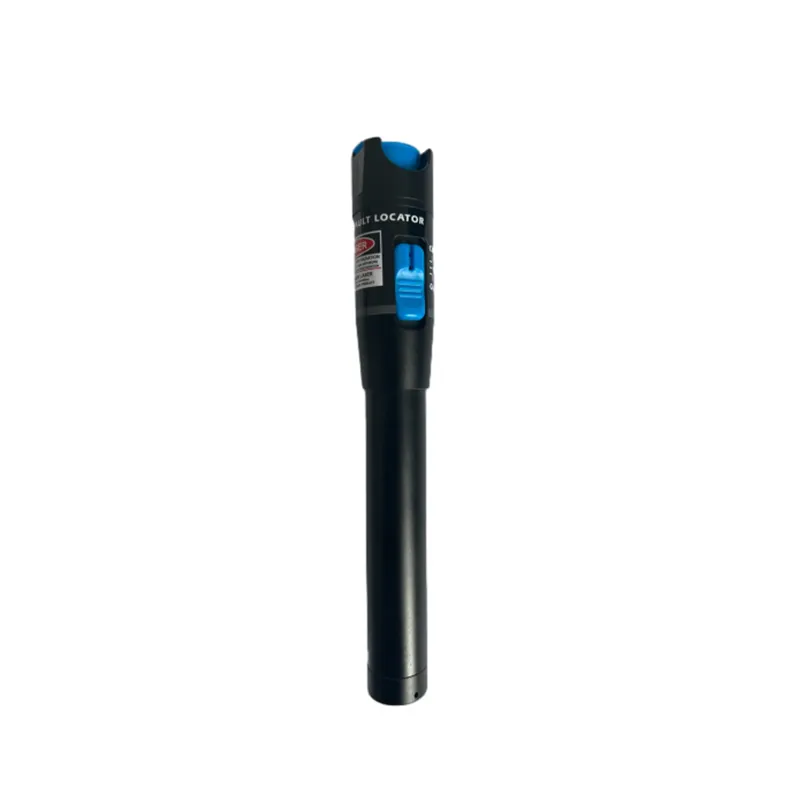

The Visual Fault Locator OPT-10mW can illuminate fiber optic communication lines within a range of 10 kilometers. Lightweight, durable, and convenient fiber optic communication line maintenance tool.
It is suitable for single-mode and multimode optical fibers.
Specification
| Parameter | Value |
| Wavelength | 650 нм |
| Power | 10mW |
| Output connector | 2.5 mm connector, FC-LC |
| Frequency | 1 Hz |
| power supply | 2 AA 1.5V batteries (not included in delivery) |
| Working temperature | от -10°С до + 45°С |
| Radiation distance | 10 km |
| Dimensions | 170х26х20 mm |
| Weight | 85 g |
